Anwendung

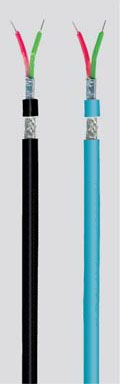

This Profibus PA line is used in the area of process automation, among other things in the chemical industry. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The types mentioned here are suitable for ex and not-ex installation and are equipped with a special PVC-jacket.
| Type/Area of Application |
Hazardous Areas |
Non-Hazardous Areas |
| Kabel-Bau |
1x2x1.6/3.2 mm |
1x2x1.6/3.2 mm |
| Inner Leiterdurchmesser1: |
Copper, bare (AWG 16/7) |
Copper, bare (AWG 16/7) |
| Dirigent Isolierung: |
PE |
PE |
| Dirigent Farben: |
red, green |
red, green |
| Strandung Element: |
2 conductors + 2 fillers stranded together |
2 conductors + 2 fillers stranded together |
| Abschirmung1: |
Polyester foil over stranded bundle |
Polyester foil over stranded bundle |
| Abschirmung2: |
Polyester foil, aluminum-lined |
Polyester foil, aluminum-lined |
| Insgesamt Abschirmung: |
Copper braid, tinned |
Copper braid, tinned |
| Outer Jacket Material: |
PVC |
PVC |
| Outer Diameter: |
9.5 mm ± 0.5 mm |
9.5 mm ± 0.5 mm |
| Outer Jacket Color: |
Blue |
Black |
Elektrische Daten
| Charakteristische Impedanz: |
100 Ohm ± 20% |
100 Ohm ± 20% |
| Leiterwiderstand: |
24.0 Ohm/km max. |
24.0 Ohm/km max. |
| Isolationswiderstand: |
1.00 GOhm x km min. |
1.00 GOhm x km min. |
| Gegenseitige Kapazität: |
60.0 nF/km nom. |
60.0 nF/km nom. |
| Nennspannung: |
300 V |
300 V |
| Prüfspannung: |
1.0 kV |
1.0 kV |
| Attenuation: |
|
|
Technical Data
| Gewicht: |
approximately 110.0 kg/km |
approximately 110.0 kg/km |
| Min. Bending Radius (Laying): |
75.0 mm |
75.0 mm |
| Operating Temp.Range, min.: |
- 40 °C |
- 40 °C |
| Operating Temp.Range, max.: |
+70 °C |
+70 °C |
| Caloric Load, approx. value: |
1.57 MJ/m |
1.57 MJ/m |
| Copper Value: |
62.0 kg/km |
62.0 kg/km |
Normen
| Applicable Standards: |
Profibus acc. to DIN 19245 T3 and EN 50170 |
Profibus acc. to DIN 19245 T3 and EN 50170 |
| UL Style: |
UL 2571 |
UL 2571 |
