 Cables Glands

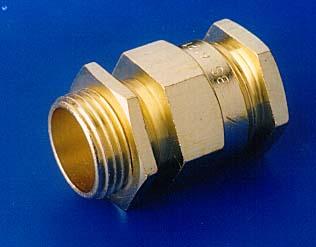

A2F Flame Proof Cable Glands to BS6121 & BS4683
Features: This Cable Glands are designed for for internal or external use with cable where an armour clamp is not required,
with a single seal giving moisture proof protection.
Application: Suitable for all types of SWA Cables
Materials: Brass & Aluminium
IP Rating: IP 66
Standards: BS 6121, BS 4683 part 2
A2F Flame Proof Cable Glands Dimensions
ISO Metric Thread Entry Size
(mm) |
Dimensions 'A' |
Equivalent Imperial Thread Size Inches |
Minimum entry thread length 'C'
(mm) |
Assembled Length excl. Thread Entry 'D'
(mm) |
Across Flats 'E'
(mm) |
Across Corners 'F'
(mm) |
Approx Gland Weight
(Kg) |
Min mm |
Max mm |
16 |
3.5 |
8.5 |
5/8 |
10 |
23 |
22 |
24.9 |
0.06 |
20SS |
3.5 |
8.5 |
3/4SS |
10 |
23 |
27 |
30.5 |
0.06 |
20S |
8.0 |
11.5 |
3/4S |
10 |
23 |
27 |
30.5 |
0.06 |
20 |
11.0 |
13.5 |
3/4 |
10 |
23 |
27 |
30.5 |
0.06 |
25S |
13.0 |
16.5 |
1S |
10 |
25 |
36 |
39.0 |
0.10 |
25 |
16.0 |
19.5 |
1 |
10 |
25 |
36 |
39.0 |
0.10 |
32 |
19.0 |
25.5 |
1 1/4 |
10 |
30 |
46 |
51.0 |
0.12 |
40 |
25.0 |
32.0 |
1 1/2 |
15 |
30 |
50 |
57.0 |
0.15 |
50S |
31.5 |
37.0 |
2S |
15 |
28 |
60 |
66.0 |
0.25 |
50 |
36.5 |
43.0 |
2 |
15 |
30 |
65 |
71.5 |
0.25 |
63S |
42.5 |
50.0 |
2 1/2S |
15 |
28 |
72 |
83.0 |
0.40 |
63 |
49.5 |
55.0 |
2 1/2 |
15 |
32 |
75 |
83.0 |
0.35 |
75S |
54.5 |
61.0 |
3S |
15 |
33 |
85 |
95.0 |
0.45 |
75 |
60.5 |
67.0 |
3 |
15 |
35 |
90 |
100.0 |
0.40 |
*S and SS denotes small cable entry size
|
